FLYING AND RADICAL ON A FOIL, BUT ALSO ON A FIN!

Whether it’s foil or fin, the most important is to get on the water and have fun. The F1e is the perfect balanced sail to have great performance both when using a foil or fin under your board. Once you decide between the wave-slalom model or slalom model.

Starting from 679,00 €

CODE 823_BLACK

TECHNICAL DATA

Size Sail type Can replace fin sails Foil boards to be used Fin boards to be used Black Bullet foils or other Wind range (knots) -80kg  Wind range (Knots) +80kg
5.4 WaveSlalom Spy, AC-F Freerace, Freeride,freestyle Wave Freewave, Freestyle wave, Freeride, Freerace Freeride to Slalom 11-18  13-22
6.4 Crossover Spy, AC-F Race, Freerace, Freeride Freewave, Freestyle wave, Freeride, Freerace, Slalom Freeride to Slalom 9-16 11-18
7.4 Freerace AC-K and AC-Z Race, Freerace Freeride, Freerace, Slalom Freerace to Slalom 8-18 11-22
8.4 FreeSlalom AC-1, AC-K, AC-Z Race, Freerace Freerace, Slalom Freerace to Slalom 7-15 9-18
Size Euros Luff Mast Extention   Boom Trim  Boom  Kg (+-5) Battens Top Cams Tack Strap Clew rdm mast sdm mast Best Mast Ext Rdm 32 Ext Rdm  48 Ext Sdm 32 Ext Sdm 48 Alu+ Boom Carbon+ Boom Best Boom Harness lines Adjustable Outhaul
5.4 679 426 400 28 170+-2 172 3.4 5 Fixed 1 no 2 ring K87 k97 no K87 K97 yes yes no no 140
160
140
150
170
Both F1Vario yes
6.4 779 457 430 28 182+-2 184 4.4 5 Fixed 1 no 2 ring K87 k97 no K87 k97 yes yes no no

160
180

150
170
Both F1Vario yes
7.4 799 495 460 38 200+-2 202 5.1 7 Fixed 2 yes 1 no K87
K97
K100 no no no yes 180
200
170
190
190
200
F1 Vario yes
8.4 899 525 490 36 216+-2 218 6.4 7 Fixed 3 yes 1 no K87
K97
K100 no no no yes 180
200
170
190
190
200
F1 Vario yes
DESIGNED FOR

Whether it’s foil or fin, the most important is to get on the water and have fun. The F1e is the perfect balanced sail to have great performance both when using a foil or fin under your board.

CONCEPT

Developing a sail able to satisfy all needs on a foil under 15 knots and blasting on a fin from 13 knots up to 21 knots. You need to choose between the type of foiling and windsurfing you like and according to your weight for the right size and model type.

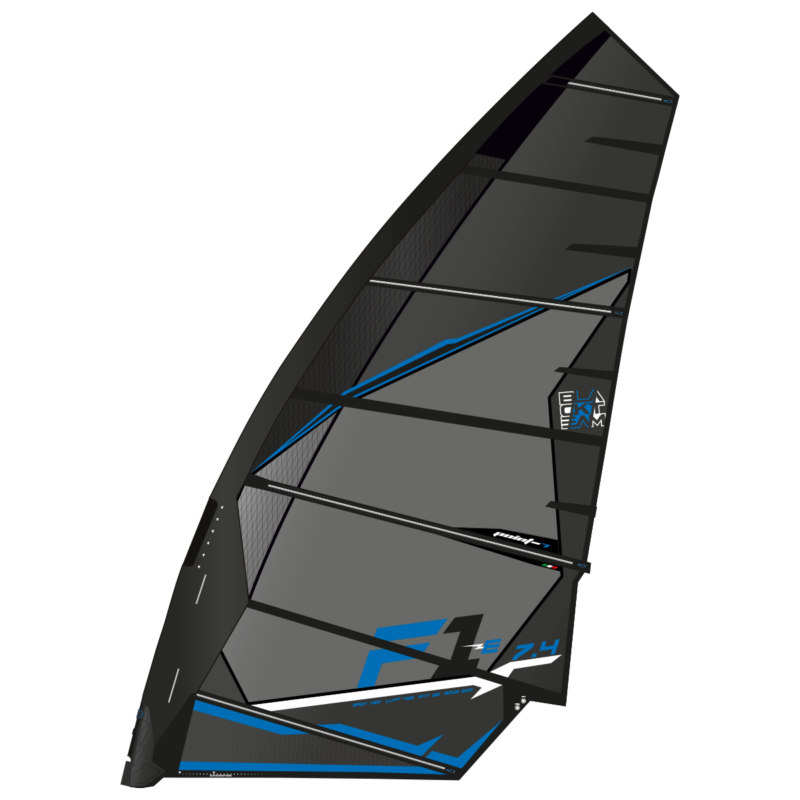

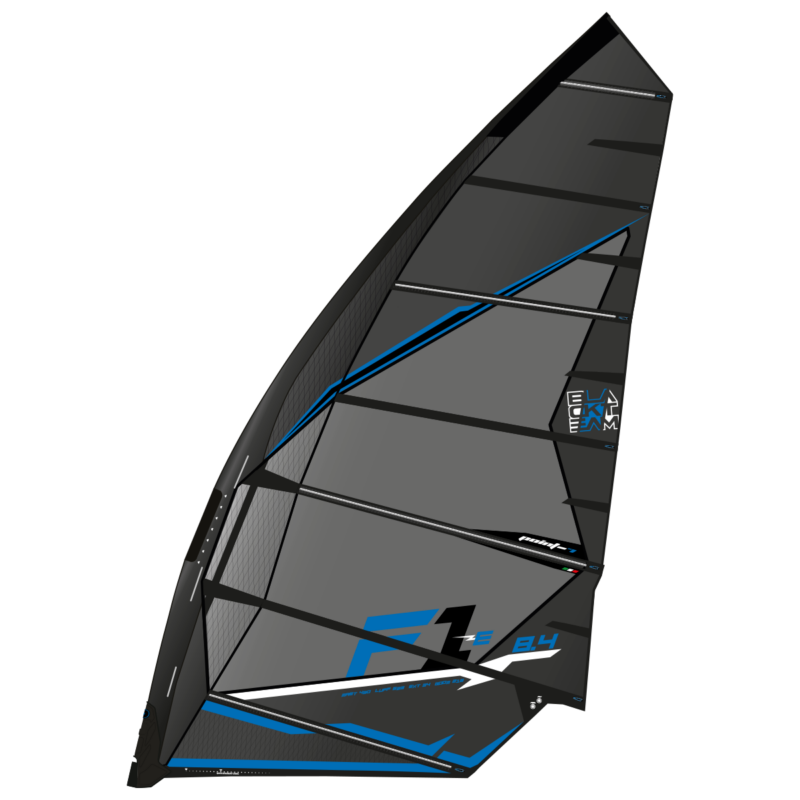

  • 7.4 and 8.4 Slalom: a full slalom sail designed to blast on any free slalom to slalom board, both for fin and foil. When the sail start to become to big on the foil, it will spin like a proper slalom sail on the fin. The 7.4 has the 2 cams below the boom and a wide sleeve only under the boom. Over the boom is having a no cam mast sleeve. The 8.4, has a mid-size wide sleeve along the whole sleeve, with 3 cams.

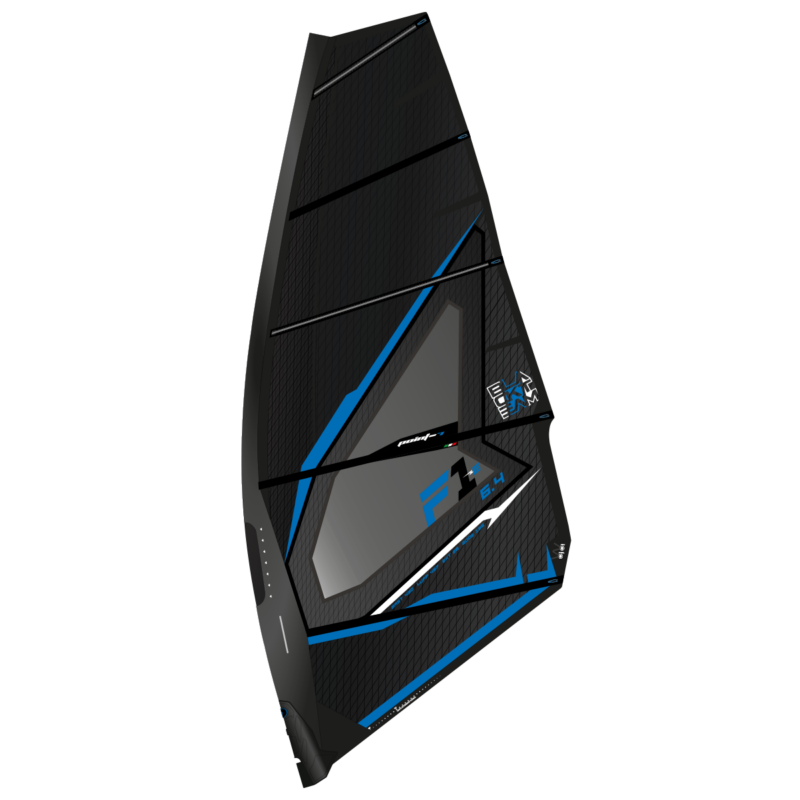

  • 6.4 Cross-over: Blast on it on a foil or fin, using from a slalom board to a freeride board on the fin, to any foil boards when foiling. A bit more drive below thanks to a mid size cam, which pushes to have the extra power, along with a wider mast sleeve just below the boom. The stability and power will give an outstanding performance on any of the boards discribed above.  Having a sail that pulls close to a size bigger, holds wind like a size smaller.
  • 5.4 Wave-Slalom: The revolution of bump & jump freestyle wave designed to do tricks both on fin and foil on freestyle to free wave boards Blasting with your freestyle wave board at high speeds in stronger winds and enjoy saw basic jumping up to looping, and nice board carving. Imagine having a bit more drive below, a small cam and a little wider sleeve, which pushes to have the extra power, stability and takes you to do all this which much more stability and control. Having a sail that pulls close to a size bigger, holds wind like a size smaller.
ON WATER

Feel as great as any of our fin sails when used with normal windsurfing boards in medium to high wind. They have been designed to fit the foil, but without sacrificing the stance on windsurfing board. 1 cam the 2 smaller sizes and 2 to 3 cams on the 2 bigger sizes. The cams in both cases give drive and stability to the foil, as well as control when powered up in windsurfing. Reduced mast sleeve size over the boom makes the sail light for flying, and comfortable on a fin when maneuvering. The short boom and high aspect reduce the back hand power when foiling, and this bring the sail to be enjoyable also in stronger wind when windy.

RESULTS

The right sail to have as the biggest size, with incredible range if used with both foil and fin.

DEVELOPED AND DESIGNED BY

The Point-7 Black Team. A team of professional sailors and designers who have proved themselves by designing the winning PWA tittle sails in Slalom, Waves and Freestyle.

DEVELOPMENT TARGET

The F1e sits in the Point-7 range as the recreational sail for both foiling and fin.  Designed specifically for fun and user-friendliness, but at the same time giving the extra edge for both uses. Having to work on a foil and on fin, you would think the sails to be compromises, but thanks to the smart set up, and wind range they will be used in, the sail will outperform any expectations.

BULLET POINTS
  • Designed for foiling up to 18knots from zero.
  • Designed for fin from 13 knots to 21 knots.
  • The only big sail needed if you foil for fun.
  • Early planning and easy handling.
  • 7 battens and 3 cams on the 8.4
  • 7 battens and 2 cam below the boom on the 7.4.
  • 5 battens and 1 cam below the boom on the 5.4 and .64.
RIGGING

The F1e having the cams, need to have the mast inserted over the cams in the mast sleeve. Downhaul 10cm to the end. Place the boom head and pull the clew. Place the cams on the mast, and pull the downhaul down to the foil settings, or 3cm for the fin setting.

F1E 22

F1E 22

2 or 1 XXL cams and a wide sleeve under the boom for extra stability and power for the foil, and control in strong fin wind.

Over the boom, the sleeve shrinks down to a pure no-cam. Easy as a wave sail to uphaul, or water start. No water can fill up the lower wide sleeve and
does not create any heavier leverage and quick maneuvering.

The top of the sail has a smaller head for more stability in stronger wind. Light feel in handling and has a slight opening all the way to the top to release
wind.

Leach opening is more closed to kill back hand both useful in light wind foil and medium to high wind fin board use.

The base will fit the fin stance for both fin and foil.

The base will fit the fin stance, but the foot is lower to close more the gap when foiling.

5mil Anti UV- X-ply base panel for protection from accidents.

Slalom Model: 4mil Anti UV X-ply laminate for high reactivity. Wave Slalom Model: 2.5 mil Anti UV X-ply laminate for light weight

X-ply alternate batten pockets for lighter weight and reflex

Lower Dacron wide sleeve for extra power and comfort. 2 cams for maximum drive a butter rotation.

Anti-UV transparent grey window to have a 100% Anti UV-Monofilm sail. All our Ply, X-ply and Scrims monofilm are produced in the Unites States.
